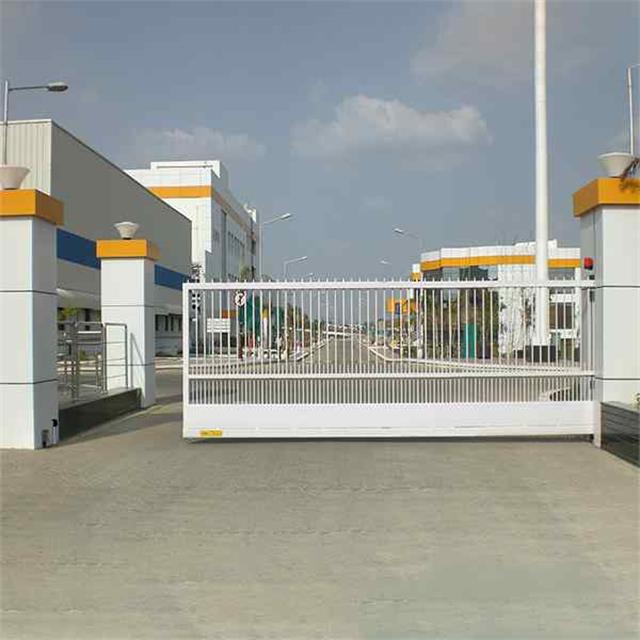

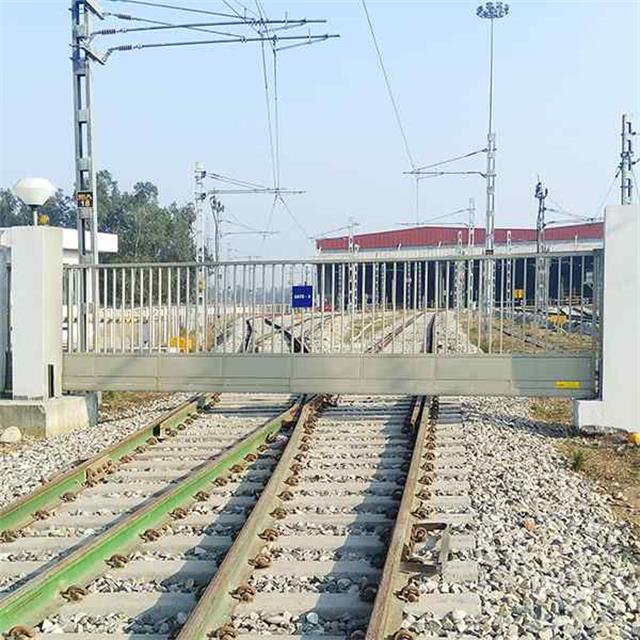

Cantilever Sliding Gates

Cantilever Gate system is a arrangement for sliding gates which is suitable for safeguarding industrial, commercial and public conveniences, where the road surfaces are rough or sloping. The gate is made-up of robust steel and works on a modest principle of 2 heavy duty carriages grouted and a massive galvanized track that rolls on the carriages, thus avoiding the need for a bottom track.

  • Cantilevered Sliding Gates accessible for a span of up to 36 m appropriate for securing commercial, industrial & public utilities
  • The benefit of using cantilevered gates is that they have no ground track or foundation in the roadway hence vehicle does not experience any collisions
  • Ideal for road surfaces which are uneven or sloping.
  • Gate is not susceptible to to getting blocked by leaves or dirt hence reduced maintenance.
  • Flat, quiet action due to no supports at the bottom of the gate.
Cantilever Sliding Gates
Cantilever Sliding Gates
Cantilever Sliding Gates
Cantilever Sliding Gates
Cantilever Sliding Gates
Cantilever Sliding Gates
Gate TypeCantilever Sliding Gates
ApplicationsIndustrial, Residential, Commercial, Warehouse, Airport, Shipyards, Railway or Any Entrance
Maximum Clear Width18000mm Single Leaf / 36000mm Double leaf (Bi-Parting)
Maximum Height2500 mm (*Larger dimensions available on request)
Opening DirectionHorizontal Straight
Opening SpeedUp to 0.16 m/s (*Up to 0.3 m/s on request)
Closing SpeedUp to 0.16 m/s (*Up to 0.3 m/s on request)
Security FeaturesCE marked according to the European Machinery Directive 2006/42/CE &
Type tested according to EN 13241-1
PatternStandard Steel hollow tubular section,torsion free fully welded unit
Gate Frame / InfillsSquare or rectangular steel hollow tubular section
CladdingMild Steel / Galvanised Steel - Standard
Stainless Steel SS304 & SS316 / Aluminium sheets/ Polycarbonate / Acrylic / PVC Sheet / Wood / Fundermax panels on request
Cantilever systemCantilever gates will be supported and guided by a special Italian make rolled section lower bottom
Cantilever TrackItalian made heavy duty horizontal frame running on two sets of adjustable double, maintenance free, steel rollers mounted on sealed bearings
Full Height ColumnGalvanised adjustable upper guide brackets with Heavy Duty steel Box section
Guide RollersNylon Roller mounted on both side of column providing lateral support & smooth
movement to the gate leaf

Standard Specifications

  • 230V-1ph, N / 415V-3ph, N
  • Rack driven rugged and powerful drive unit with integral electronic control unit
  • Open / Emergency Stop / Close
  • 300Kg to 25000Kg
  • Intensive use
  • Operator : IP 44 (* Higher IP rating on request)
  • Key operated
  • Pair of Photocells with anodised aluminium vertical mountings
  • Flashing light

Additional Optional Accessories

  • Pair of Reverse Safety photocells
  • Key Selector, Remote Transmitter
  • Vertical Safety Edge
  • Between Gate & Boom Barriers or equipped with a client control unit

Standard Colours Similar To

  • Grey Primer RAL 7015
  • Silver RAL 9006
  • Grey RAL 7015
  • Blue RAL 5010
  • Orange RAL 2000

Optional Surface Finish

  • As Per ISO 1461:2022
  • As per ISO 12944 With Sand Blasting
*Other RAL available on request
