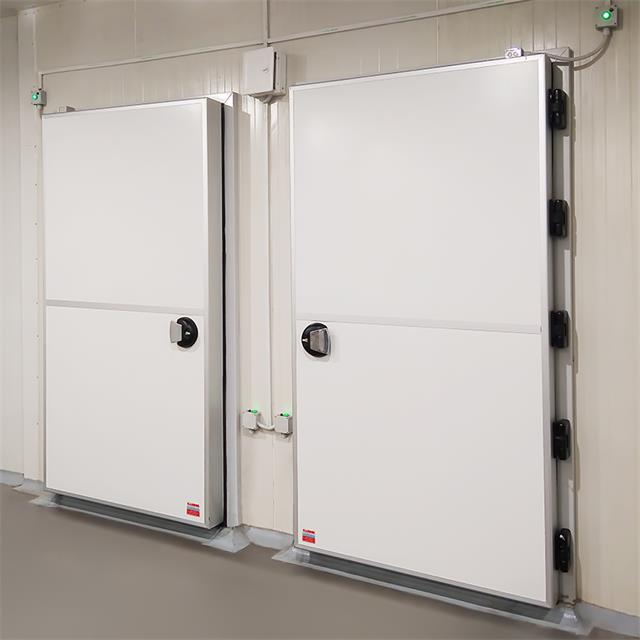

Hinged doors are those That are used for the passage of pallet trucks or personnel in areas having insufficient space for sliding.

They are used in smaller passage areas compared to sliding doors. With single and double-leaf alternatives, Gandhi Automation's hinged doors always have an option suitable for your needs.

Gandhi Automation caters to a complete range of hinged doors for cold rooms.

With door thicknesses from 70mm to 150 mm, these hinged doors are suitable for any type of application. They are characterized by the aluminum leaf edge and by the internal push closure and lock.

CBT15/CBT12/CBT9-used for below 0 degrees up to minus 40 degree / CTN9/CTN7-used for over 0 degrees

  • The hinged doors are in accordance to the European constructive standard characterized by the anodized aluminum profile leaf edge.
  • Polyurethane foam injected under heated press with a density of around 40/43 kg/m3 (mono-block leaf)
  • Alternative frames as PVC or Aluminum or Stainless Steel
  • Complete sealing performance with special design hinge system and gaskets
  • The series is produced for positive and negative temperature application and are available in different colors and in stainless steel construction.
  • Various accessories provided such as panic bar, vision portholes etc. on demand
  • Commonly used for small width openings for pedestrian movement mainly, where users don’t have sliding space.
Cold Storage Hatch Door Manufacturers in India
Swing Cold Storage Door
Cold Storage Hatch Door
Hinged Cold Room door  Manufacturers
Swing Cold Storage Door
Swing Cold Storage Door Manufacturers In India
Swing Cold Storage Doors Manufacturers In India
Cold Storage Hatch Door Manufacturers in India
Swing Cold Storage Door
Cold Storage Hatch Door
Hinged Cold Room door  Manufacturers
Swing Cold Storage Door
Swing Cold Storage Door Manufacturers In India
Swing Cold Storage Doors Manufacturers In India
Door TypeHinged
UsagePositive temperature
Working temperatureUp to +5° Celsius
Leaf Thickness70mm
Maximum width1300mm
Maximum height4700mm
Leaf Surface Sheet Thickness0.5 mm - 1.2 mm
Leaf CladdingPre Painted Galvanized Steel / Stainless Steel
Frame AlternativePVC / AL / SS
GasketSingle Line
(Rubber + Sponge)
Heater Element CableNot Applicable
Heater Element in FrameNot Applicable
Rail Passage System
(Meat Rail Passage Application)
Optional
Threshold HeaterNot Applicable
Window (4-16-4) (Thermal Series)Optional
PVC Curtain , Air CurtainOptional
Kick PlateOptional
Safety BollardOptional
Panic Bar (Inside)Optional
Door TypeHinged
UsagePositive temperature
Working temperatureUp to +0° Celsius
Leaf Thickness90mm
Maximum width1300mm Single / 2500mm Double
Maximum height4700mm
Leaf Surface Sheet Thickness0.5 mm - 1.2 mm
Leaf CladdingPre Painted Galvanized Steel / Stainless Steel
Frame AlternativePVC / AL / SS
GasketSingle Line
(Rubber + Sponge)
Heater Element CableNot Applicable
Heater Element in FrameNot Applicable
Rail Passage System
(Meat Rail Passage Application)
Optional
Threshold HeaterNot Applicable
Window (4-16-4) (Thermal Series)Optional
PVC Curtain , Air CurtainOptional
Kick PlateOptional
Safety BollardOptional
Panic Bar (Inside)Optional
Door TypeHinged
UsageNegative temperature
Working temperatureUp to -10° Celsius
Leaf Thickness90mm
Maximum width1200mm Single / 2400mm Double
Maximum height4700mm
Leaf Surface Sheet Thickness0.5 mm - 1.2 mm
Leaf CladdingPre Painted Galvanized Steel / Stainless Steel
Frame AlternativePVC / AL / SS
GasketSingle Line
(Rubber + Sponge)
Heater Element CableResistance in Gasket 25 W/m
Heater Element in FrameNot Applicable
Rail Passage System
(Meat Rail Passage Application)
Optional
Threshold HeaterOptional (50 W/m)
Window (4-16-4) (Thermal Series)Optional (With Heater Element)
PVC Curtain , Air CurtainOptional
Kick PlateOptional
Safety BollardOptional
Panic Bar (Inside)Optional
Door TypeHinged
UsageNegative temperature
Working temperatureUp to -25° Celsius
Leaf Thickness120mm
Maximum width1200mm Single / 2400mm Double
Maximum height4700mm
Leaf Surface Sheet Thickness0.5 mm - 1.2 mm
Leaf CladdingPre Painted Galvanized Steel / Stainless Steel
Frame AlternativePVC / AL / SS
GasketDouble Line
(Rubber + Sponge)
Heater Element CableResistance in Gasket 25 W/m x 2
Heater Element in FrameOptional
Rail Passage System
(Meat Rail Passage Application)
Optional
Threshold HeaterOptional (50 W/m)
Window (4-16-4) (Thermal Series)Optional (With Heater Element)
PVC Curtain , Air CurtainOptional
Kick PlateOptional
Safety BollardOptional
Panic Bar (Inside)Optional
Door TypeHinged
UsageNegative temperature
Working temperatureUp to -40° Celsius
Leaf Thickness150mm
Maximum width1200mm
Maximum height4700mm
Leaf Surface Sheet Thickness0.5 mm - 1.2 mm
Leaf CladdingPre Painted Galvanized Steel / Stainless Steel
Frame AlternativePVC / AL / SS
GasketDouble Line
(Rubber + Sponge)
Heater Element CableResistance in Gasket 25 W/m x 2
Heater Element in FrameMandatory
Rail Passage System
(Meat Rail Passage Application)
Not Applicable
Threshold HeaterMandatory (50 W/m)
Window (4-16-4) (Thermal Series)Optional (With Heater Element)
PVC Curtain , Air CurtainOptional
Kick PlateOptional
Safety BollardOptional
Panic Bar (Inside)Optional
