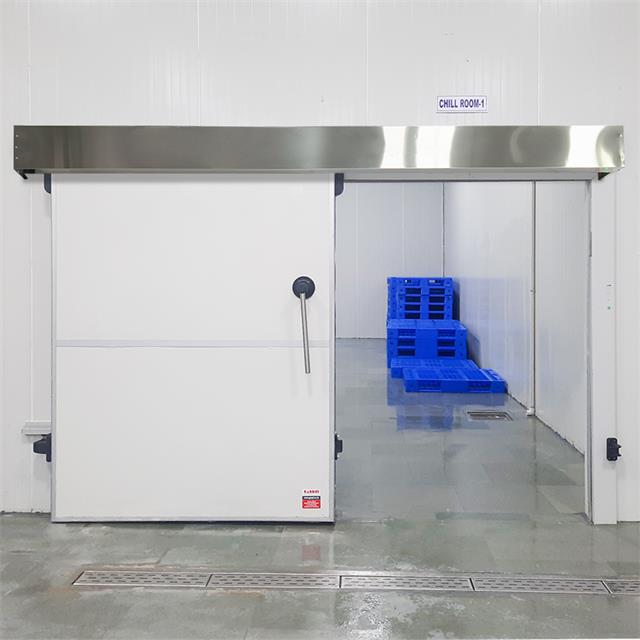

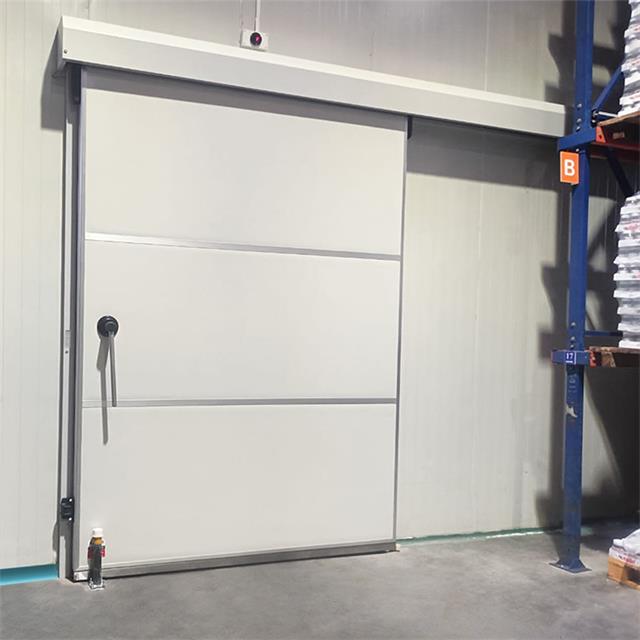

- Sliding doors for applications from 0 degree Celsius to -40 degree Celsius
- Alternative frames as PVC or Aluminum
- Doors with 90, 120 and 150mm thick leaf
- Suitable for heavy duty applications
- Hermetic sealing, energy efficient and ease of operation
- Minimalist design and smooth surface railing that maintain highest standards of hygiene
- Heating cable inside the gasket all around the door leaf and also inside the aluminium frames, as the PVC frames do not require the heating cable.
- Satisfy European health conditions
- Thermal bridge is properly broken in case of aluminium frames to improve the efficiency of the cold storage.
- Technical Specification
- Operator And Control
- GBT9
- GBT12
- GBT15
- GBT9
- GBT12
- GBT15
| Door Type | Sliding |
| Usage | Cold Storage for Negative Temperature |
| Working temperature | Up to -10° Celsius |
| Leaf Thickness | 90mm |
| Maximum width | 2700mm |
| Maximum height | 4700mm |
| Type of operation | Automatic / Manual |
| Leaf Surface Sheet Thickness | 0.5 mm - 0.8 mm |
| Leaf Cladding | Pre Painted Galvanized Steel / Stainless Steel |
| Frame Alternative | PVC / AL / SS |
| Gasket | Single Line (Rubber + Sponge) |
| Heater Element Cable | Resistance in Gasket 25 W/m |
| Heater Element in Frame | Mandatory |
| Threshold Heater | Not Applicable |
| Rail Passage System (Meat Rail Passage Apllication) | Optional |
| Security Lock | Pad lock unit , Leaf inbuilt lock |
| Inbuilt Vision Window | Optional |
| Window (4-16-4) (Thermal Series) | Optional |
| PVC Curtain , Air Curtain | Optional |
| Safety Barrier | Optional |
| Kick Plate | Optional |
| Door Type | Sliding |
| Usage | Cold Storage for Negative Temperature |
| Working temperature | Up to -25° Celsius |
| Leaf Thickness | 120mm |
| Maximum width | 2700mm |
| Maximum height | 4700mm |
| Type of operation | Automatic / Manual |
| Leaf Surface Sheet Thickness | 0.5 mm - 0.8 mm |
| Leaf Cladding | Pre Painted Galvanized Steel / Stainless Steel |
| Frame Alternative | PVC / AL / SS |
| Gasket | Double Line (Rubber + Sponge) |
| Heater Element Cable | Resistance in Gasket 25 W/m x 2 |
| Heater Element in Frame | Mandatory |
| Threshold Heater | Mandatory (50 W/m) |
| Rail Passage System (Meat Rail Passage Apllication) | Optional |
| Security Lock | Pad lock unit , Leaf inbuilt lock |
| Inbuilt Vision Window | Optional |
| Window (4-16-4) (Thermal Series) | Optional |
| PVC Curtain , Air Curtain | Optional |
| Safety Barrier | Optional |
| Kick Plate | Optional |
| Door Type | Sliding |
| Usage | Cold Storage for positive temperature |
| Working temperature | Up to -40° Celsius |
| Leaf Thickness | 150mm |
| Maximum width | 2700mm |
| Maximum height | 4700mm |
| Type of operation | Automatic / Manual |
| Leaf Surface Sheet Thickness | 0.5 mm - 0.8 mm |
| Leaf Cladding | Pre Painted Galvanized Steel / Stainless Steel |
| Frame Alternative | PVC / AL / SS |
| Gasket | Double Line (Rubber + Sponge) |
| Rail Passage System (Meat Rail Passage Apllication) | Optional |
| Security Lock | Pad lock unit , Leaf inbuilt lock |
| Inbuilt Vision Window | Not Applicable |
| Window (4-16-4) (Thermal Series) | Not Applicable |
| PVC Curtain , Air Curtain | Optional |
| Safety Barrier | Optional |
| Kick Plate | Optional |
Standard Specifications
- 230V-1ph, N
- Open / Stop / Close
- Control : IP 65
- Photocell
- '-25° Celsius to +55° Celsius
Additional Optional Accessories
- Photocell from inside
- Radar Presence Detector, Induction Loop, Magnetic Loop Detector
- Traffic light, Flashing Light with or without Buzzer
