Gandhi Loading Lift Tables comply with the European Safety of Machinery standards EN 292, Machinery Directive 2006/42/CE and Safety requirements for lift tables EN 1570.

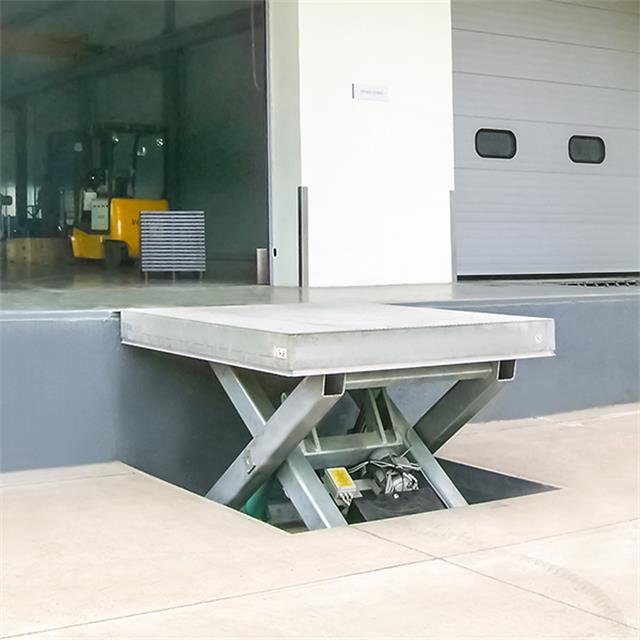

Used to load and unload vehicles by pedestrian or fork lift trucks without a loading dock and designed to operate with maximum safety for off-centred crossing loads.


All models include:

  • Aluminium safety bar, stopping descent of the platform on contact with obstructions.
  • Safety clearance between scissors to prevent trapping during operation.
  • Safety check valve to stop the lift table lowering in the unlikely event of a hose break.
  • Protection against overloading.
  • Low voltage control box with up-down buttons and emergency stop.
  • Maintenance props (for safe maintenance operation).
  • Removable lifting eyes to facilitate handling and lift table installation.
Model Capacity (Kg) Platform Width Platform Length Collapsed Height Elevated Height
SLT-20-2025 2000 2000 2500 350 1600
SLT-20-2030 2000 2000 3000 350 2000
SLT-20-2225 2000 2200 2500 350 1600
SLT-20-2230 2000 2200 3000 350 2000
SLT-60-2025 6000 2000 2500 550 1500
SLT-60-2030 6000 2000 3000 600 1800
SLT-60-2225 6000 2200 2500 550 1500
SLT-60-2230 6000 2200 3000 600 1800
