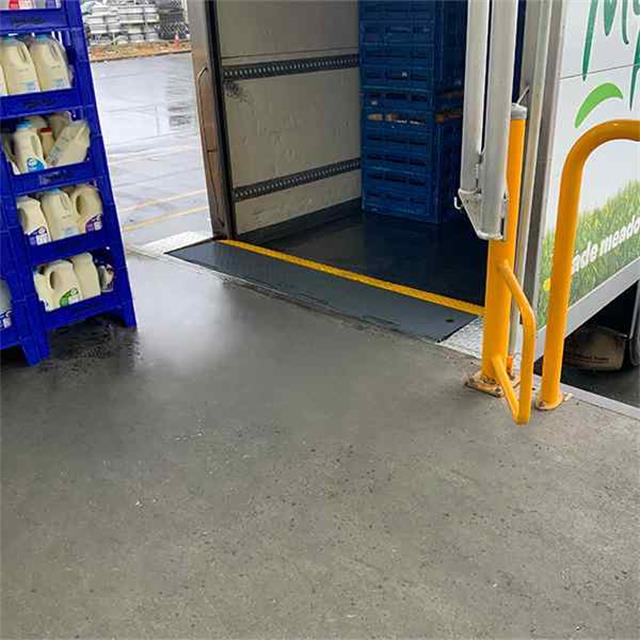

Edge-of-Dock Levelers are low cost yet high performing solutions for applications that have standard or little variance in truck bed heights at loading dock. It is ideally suited where pit leveller installation is not feasible. Edge-of-Dock Leveler platform is mounted to the edge of a building wall to assist loading & unloading in a limited working range of 100mm above dock & 100mm below dock.

The open hinge lip construction, carries a lifetime guarantee and has a solid welded connection between the lip plate & the beams under the deck to ensure the lip angle of 7.5ยฐ is maintained. This is extremely important when loading / unloading vehicles with bed heights above dock leveller, to ensure that the lip always lays flat on the vehicle floor to avoid the tripping hazard.

Edge-of-Dock Leveler is developed in compliance with the latest European safety standard, EN 1398. It has a capacity of 6T / 9T / 12T and is suitable for use with all types of loading equipment from manual pallet trucks to fork trucks. Robotically welded platform and lip in anti-slip steel.

Gandhi Edge-of-Dock Levelers are available in both versions mechanical (manual) and hydraulic.

Although Gandhi Edge-of-Dock Leveler is operated manually by handling rod, it is supported by a gas spring which makes it easier to operate-lift and swing the platform. The design meets the demands of most simple loading operations and ensures compliance with all ergonomic requirements

*EOD = Edge of Dock Levelers Hydraulic

Model Total Width Platform Width Total Length
Working Range Above / Below Dock
HEOD-1830 2255 1830 700 100 / 100
HEOD-2000 2425 2000 700 100 / 100
HEOD-2110 2535 2110 700 100 / 100
Model Total Width Platform Width Total Length
Working Range Above / Below Dock
EOD-1830 2255 1830 700 100 / 100
EOD-2000 2425 2000 700 100 / 100
EOD-2110 2535 2110 700 100 / 100
